The mixing area comprises one or more mixing vessels for dissolving , dispersing , or mixing active ingredients or excipients. The system is designed for hygienic process conditions according to pharmaceutical requirements – including high-quality surfaces up to and including electropolishing , as well as consistent, liquid media feed via pipelines (e.g., via spray balls ).



 Application



 Preparation of active ingredients or excipients (dissolving, dispersing, mixing)


 Transfer to downstream formulation, mixing or dosing stations


 Reliable conveying of additives even when there is no gradient




 Structure & Functional Principle

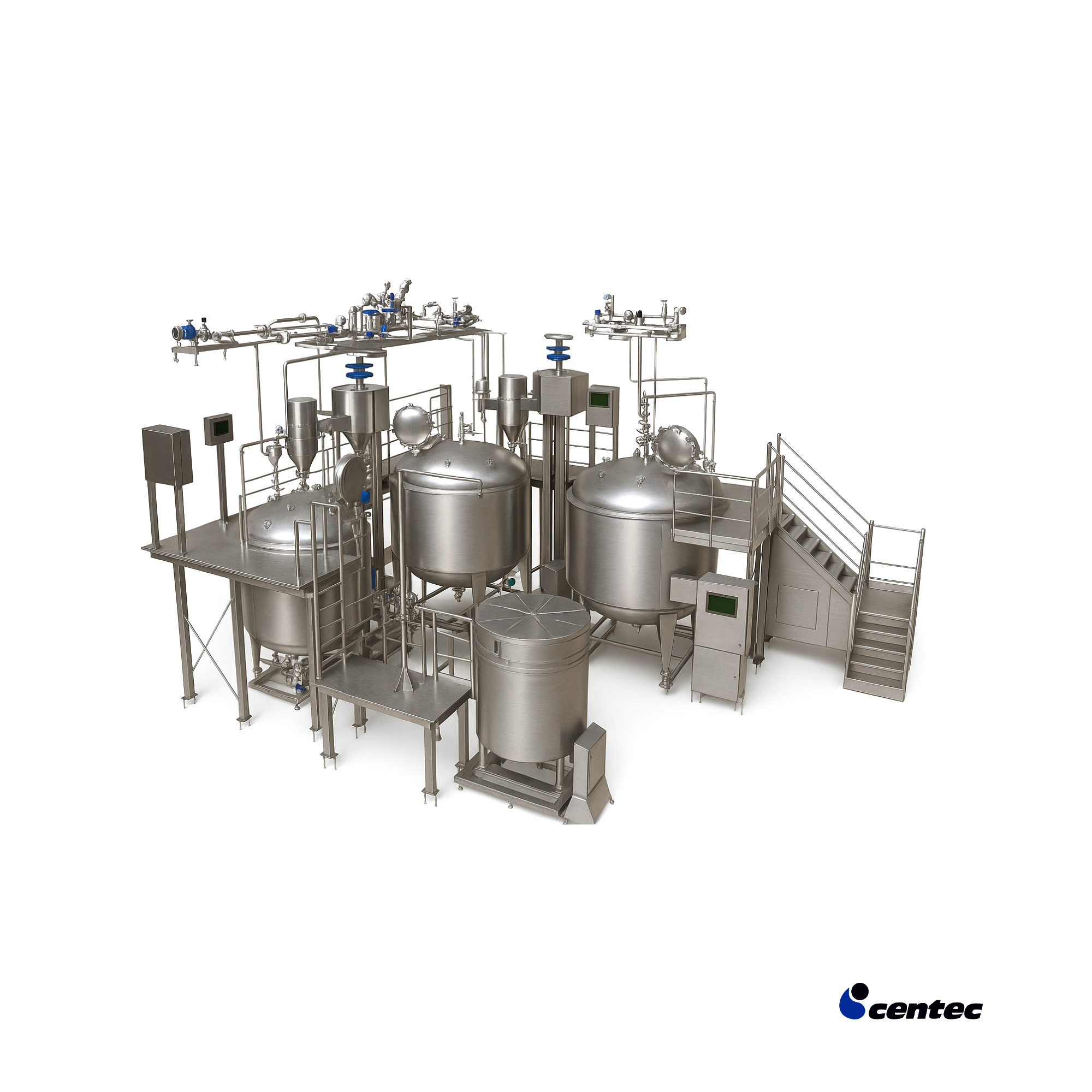

 The mixing containers form the hygienic mixing area for media preparation.


 Liquid and/or solid additives are then conveyed to the main processing area via an integrated lifting system (lifting column) .


 The lifting system uses chemical- and pressure-resistant pumps and collection tanks , ensuring pumping capability even in the absence of a gradient.


 The combination of mixing tanks and lifting system is designed for seamless integration into the automation and control architecture – including level monitoring , pump control , quantity preparation and transfer to the subsequent process steps.


 The automation of the lifting system is fully integrated into the control of the mixing container, including recipe management .




 Hygiene, cleaning & compliance



 Design for pharmaceutical hygiene requirements


 CIP/SIP-capable with dead-space-free and optimized cleaning paths according to BAT


 GMP and FDA compliant design, documentation and validation documents (project-specific)




 Key technical points



 Hygienic design in AISI 316L with electropolished surface and Ra ≤ 0.5 µm


 Integrated lifting and conveying technology for lower-lying collection points


 Fully automated control with monitoring of pH / LR / T / p / fill level


 Modular skid design for flexible expansion and easy installation


 Design and documentation packages including validation documents (depending on the version)




 Advantage
 Efficient, automation-capable combined approach and lifting area for pharmaceutical processes – with consistent hygiene design and integrated conveying technology.



 Technical data

 Mixing tank volume: 50 – 10,000 l (modularly expandable)

 Material: AISI 316L / Material 1.4404

 Buffer/lifting height of lifting system: customer-specific up to 4.0 m lifting height

 Pump capacity: 0.5 – 15 m³/h

 Surface roughness of mixing container: Ra ≤ 0.5 µm electropolished

 Temperature range: 20 – 90 °C (optionally up to 120 °C)



 Options (depending on the version / project-specific)



 CIP/SIP-enabled


 automatic level and flow monitoring


 Redundancy pumps


 Remote maintenance




 contact
 For project-specific design, integration and a quote, please use the contact form at the bottom of the page.
